Intel Tiber AI Cloud Quick Start Guide

This document provides instructions on setting up the Intel® Gaudi® 3 and Intel® Gaudi® 2 AI accelerator instances on the Intel® Tiber™ AI Cloud and running models from the Intel Gaudi Model References repository and the Hugging Face Optimum for Intel Gaudi library.

Please follow along with the video on our Developer Page to walk through the steps below.

Creating an Account and Getting an Instance

Follow the below steps to get access to the Intel Tiber AI Cloud and launch a Gaudi 3 or a Gaudi 2 card instance.

1. Go to https://console.cloud.intel.com and select Get Started to create an account and get SSH access:

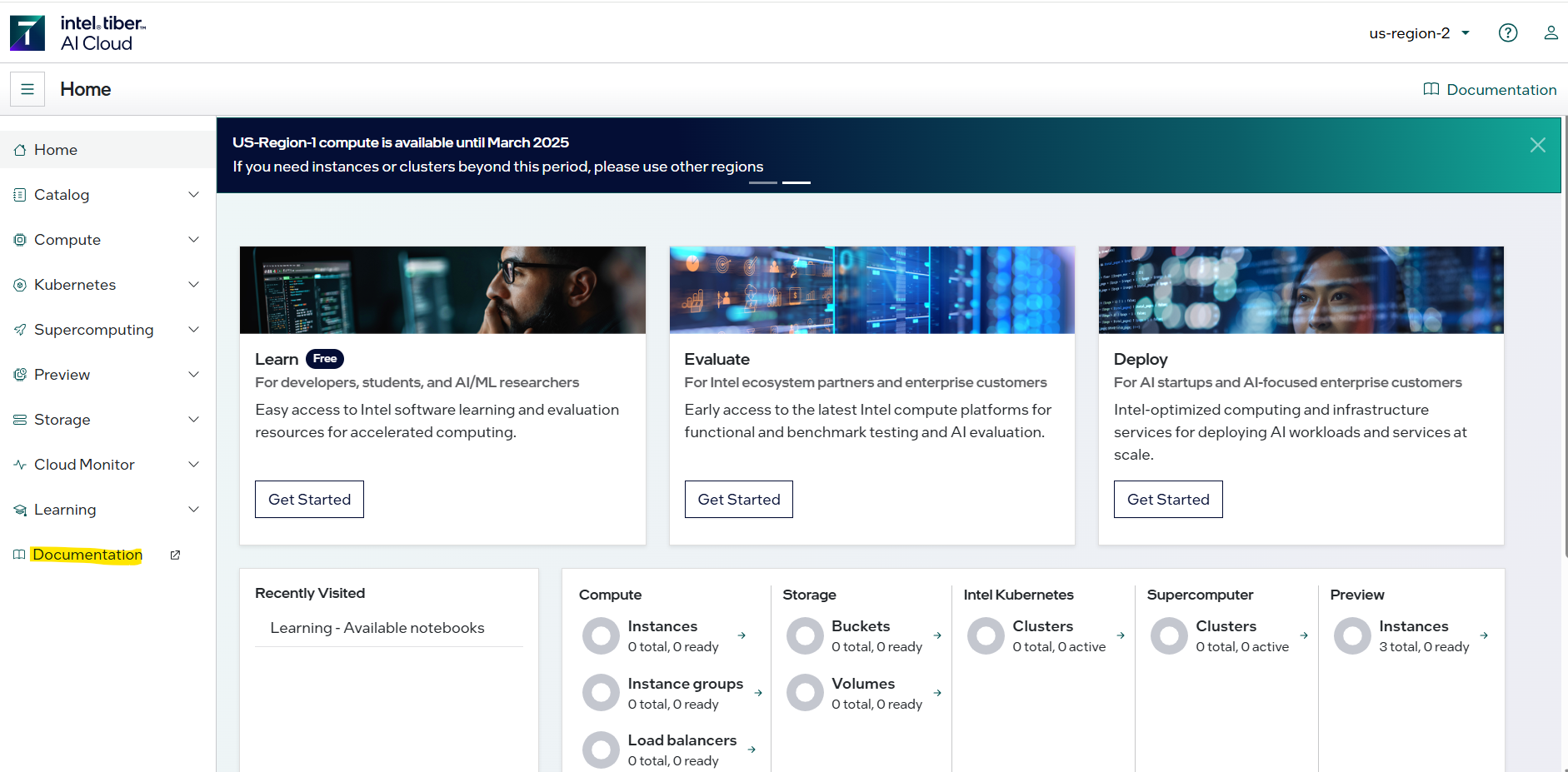

2. Go to “Console Home” and select “Documentation”:

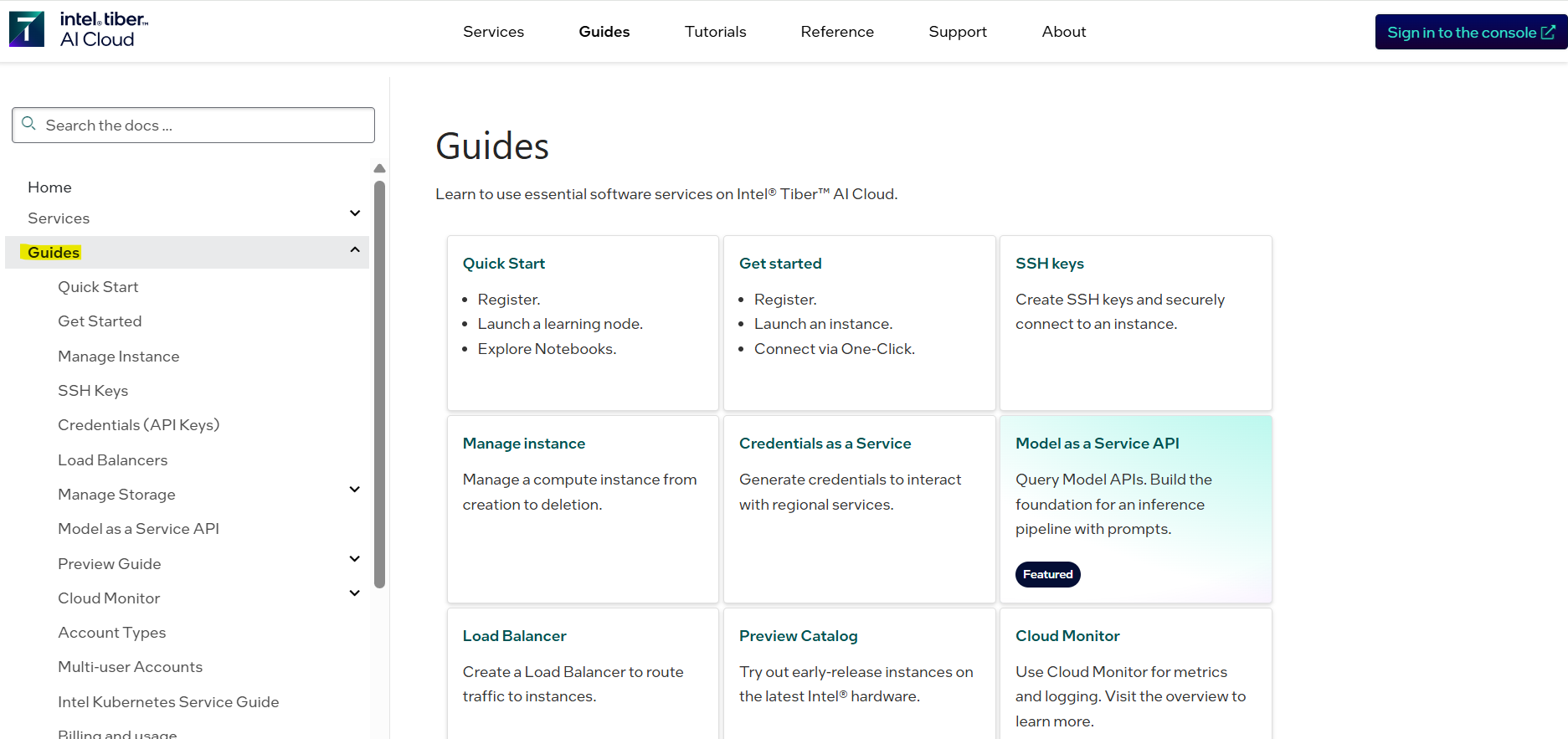

3. Select “Guides”:

4. Create a Gaudi instance:

   Gaudi 3

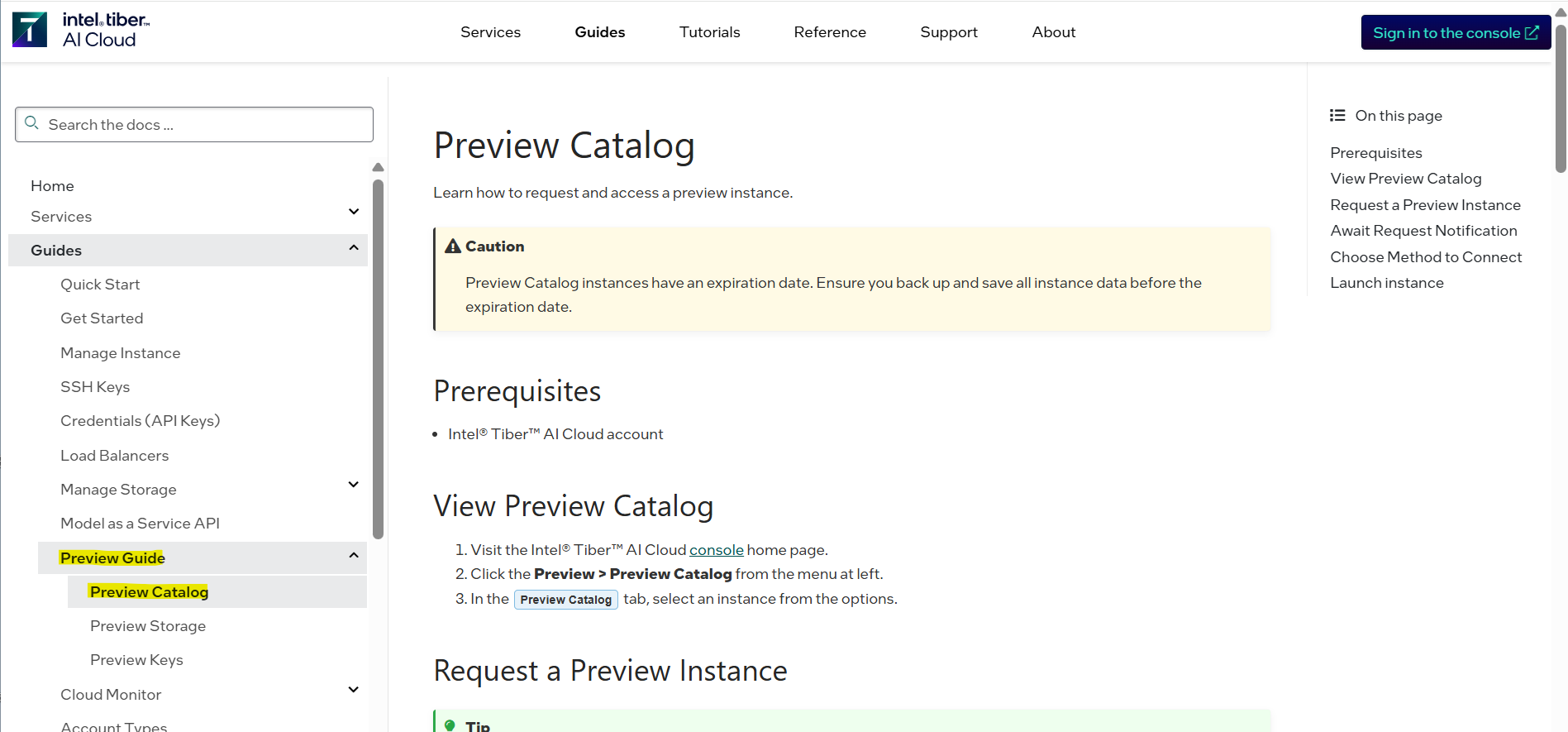

   Select “Preview Guide > Preview Catalog” (or go directly to https://console.cloud.intel.com/docs/guides/preview_cat.html) and follow the instructions:



   Gaudi 2

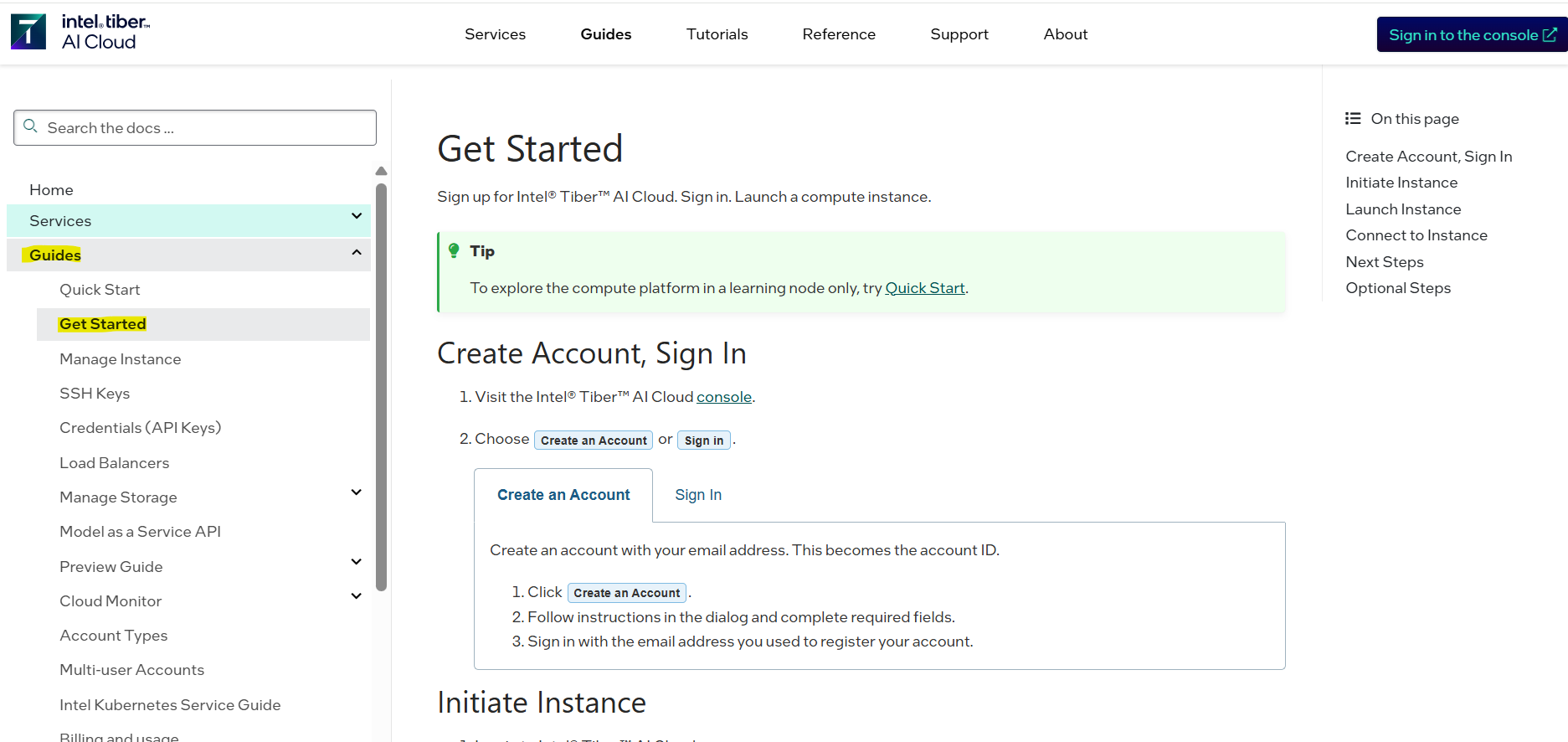

   Select “Get Started” (or go directly to https://console.cloud.intel.com/docs/guides/get_started.html) and follow the instructions:

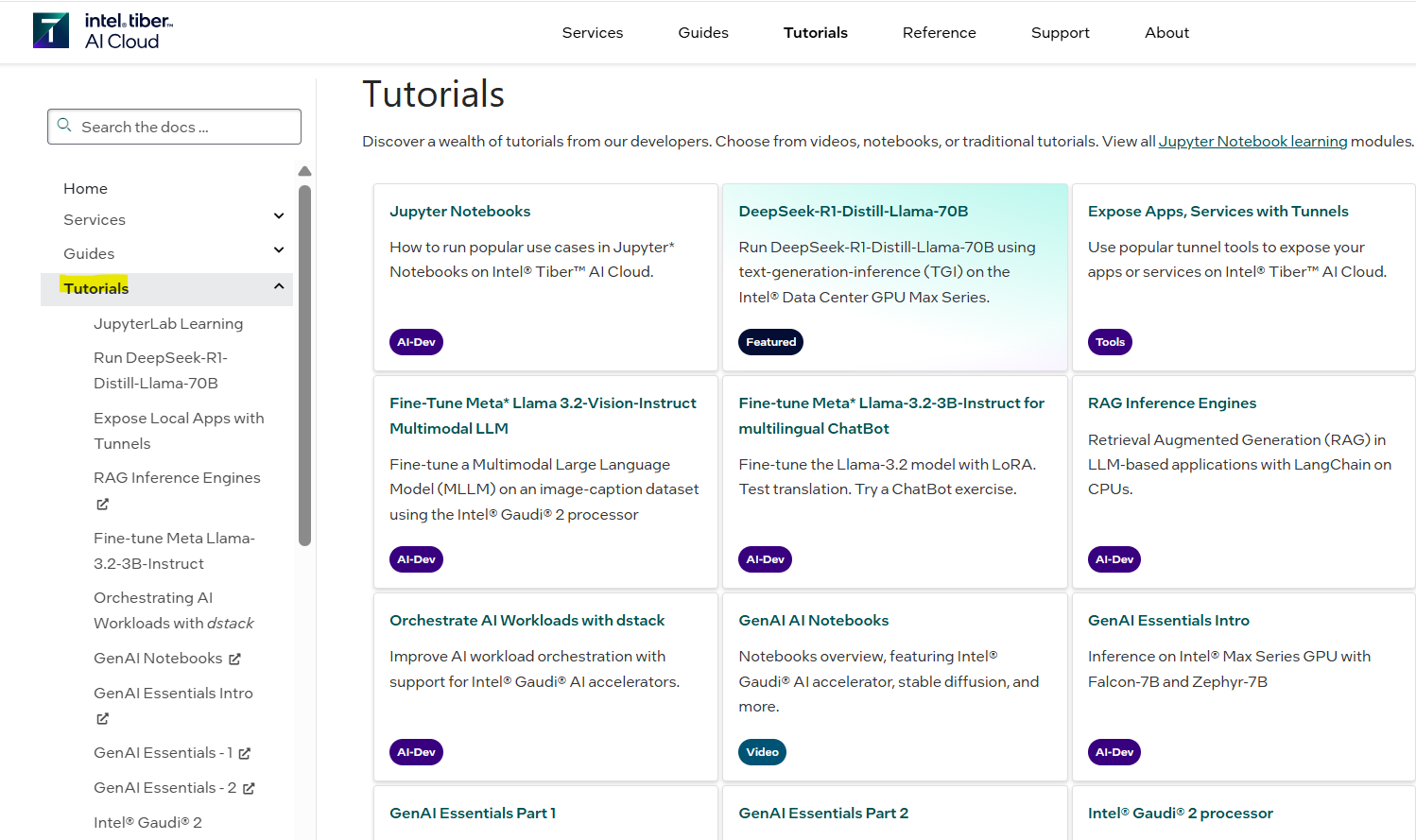

5. To access tutorials, Jupyter Notebooks, and code samples, select “Tutorials”:

Start Training a PyTorch Model on Gaudi

1. Run the hl-smi tool to confirm the Intel Gaudi software version used on your Intel Tiber AI Cloud instance. You will need to use the correct software version in the docker run and git clone commands. Use the HL-SMI Version at the top. In this case, the version is 1.21.1:

      HL-SMI Version:       hl-1.21.1-XXXXXXX
      Driver Version:       1.21.1-XXXXXX


2. Run the Intel Gaudi Docker image:

      docker run -it --runtime=habana -e HABANA_VISIBLE_DEVICES=all -e OMPI_MCA_btl_vader_single_copy_mechanism=none --cap-add=sys_nice --net=host --ipc=host vault.habana.ai/gaudi-docker/1.21.1/ubuntu22.04/habanalabs/pytorch-installer-2.6.0:latest


   Note

   • You may see this error message after running the above docker command:

     docker: permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Head "http://%2Fvar%2Frun%2Fdocker.sock/_ping": dial unix /var/run/docker.sock: connect: permission denied.


     To avoid this, add your user to the docker group:

     sudo usermod -a -G docker $USER


     Exit the terminal and re-enter it. Your original docker command should now work properly.

   • When starting the container in interactive mode, the following error message may appear. This error can be ignored when running on a single server.

     * Starting OpenBSD Secure Shell server
     sshd
     sshd: no hostkeys available -- exiting.
                                                 [fail]


     For multi-server setups, refer to the multi_node_setup section below for instructions on generating SSH host keys:

3. Clone the Model References repository inside the container that you have just started:

      cd ~
      git clone -b 1.21.0 https://github.com/HabanaAI/Model-References.git


4. Move to the subdirectory containing the hello_world example:

   cd Model-References/PyTorch/examples/computer_vision/hello_world/


5. Update the environment variables to point to where the Model References repository is located and set PYTHON to Python executable:

   export PYTHONPATH=$PYTHONPATH:/root/Model-References
   export PYTHON=/usr/bin/python3.10


   Note

   The Python version depends on the operating system. Refer to the Support Matrix for a full list of supported operating systems and Python versions.

Training Examples

Training on a Single Gaudi Card

Run training on a single HPU in BF16 with autocast enabled. This is a simple linear regression model. Copy this run command into your terminal window:

PT_HPU_LAZY_MODE=0 $PYTHON mnist.py --batch-size=64 --epochs=1 --lr=1.0 --gamma=0.7 --hpu --autocast --use-torch-compile

The following shows the expected output:

============================= HABANA PT BRIDGE CONFIGURATION ===========================
 PT_HPU_LAZY_MODE = 0
 PT_HPU_RECIPE_CACHE_CONFIG = ,false,1024
 PT_HPU_MAX_COMPOUND_OP_SIZE = 9223372036854775807
 PT_HPU_LAZY_ACC_PAR_MODE = 1
 PT_HPU_ENABLE_REFINE_DYNAMIC_SHAPES = 0
 PT_HPU_EAGER_PIPELINE_ENABLE = 1
 PT_HPU_EAGER_COLLECTIVE_PIPELINE_ENABLE = 1
 PT_HPU_ENABLE_LAZY_COLLECTIVES = 0
---------------------------: System Configuration :---------------------------
Num CPU Cores : 224
CPU RAM       : 1056253844 KB
------------------------------------------------------------------------------
Train Epoch: 1 [0/60000.0 (0%)] Loss: 2.265625
Train Epoch: 1 [640/60000.0 (1%)]       Loss: 1.445312
***
Train Epoch: 1 [58880/60000.0 (98%)]    Loss: 0.035156
Train Epoch: 1 [59520/60000.0 (99%)]    Loss: 0.001045

Total test set: 10000, number of workers: 1
* Average Acc 92.850 Average loss 0.053

Distributed Training on 8 Gaudis

Run training on the same model using all eight HPUs. Copy this run command into your terminal window:

mpirun -n 8 --bind-to core --map-by socket:PE=6 \
      --rank-by core --report-bindings \
      --allow-run-as-root \
      -x PT_HPU_LAZY_MODE=0 $PYTHON mnist.py \
      --batch-size=64 --epochs=1 \
      --lr=1.0 --gamma=0.7 \
      --hpu --autocast --use-torch-compile

The following shows part of the expected output:

| distributed init (rank 0): env://
| distributed init (rank 3): env://
| distributed init (rank 5): env://
| distributed init (rank 6): env://
| distributed init (rank 4): env://
| distributed init (rank 7): env://
| distributed init (rank 1): env://
| distributed init (rank 2): env://
============================= HABANA PT BRIDGE CONFIGURATION ===========================
PT_HPU_LAZY_MODE = 0
PT_HPU_RECIPE_CACHE_CONFIG = ,false,1024
PT_HPU_MAX_COMPOUND_OP_SIZE = 9223372036854775807
PT_HPU_LAZY_ACC_PAR_MODE = 1
PT_HPU_ENABLE_REFINE_DYNAMIC_SHAPES = 0
PT_HPU_EAGER_PIPELINE_ENABLE = 1
PT_HPU_EAGER_COLLECTIVE_PIPELINE_ENABLE = 1
PT_HPU_ENABLE_LAZY_COLLECTIVES = 0
---------------------------: System Configuration :---------------------------
Num CPU Cores : 160
CPU RAM       : 1056387128 KB
------------------------------------------------------------------------------
Train Epoch: 1 [0/7500.0 (0%)]  Loss: 2.296875
Train Epoch: 1 [640/7500.0 (9%)]        Loss: 0.972656
Train Epoch: 1 [1280/7500.0 (17%)]      Loss: 0.539062
***
Train Epoch: 1 [5760/7500.0 (77%)]      Loss: 0.057861
Train Epoch: 1 [6400/7500.0 (85%)]      Loss: 0.069824
Train Epoch: 1 [7040/7500.0 (94%)]      Loss: 0.044434

Total test set: 10000, number of workers: 8
* Average Acc 97.882 Average loss 0.063

Fine-tuning with Hugging Face Optimum for Intel Gaudi Library

The Optimum for Intel Gaudi library is the interface between the Hugging Face Transformers and Diffusers libraries and the Gaudi card. It provides a set of tools enabling easy model loading, training and inference on single and multi-card settings for different downstream tasks. The following example uses the text-classification task to fine-tune a BERT-Large model with the MRPC (Microsoft Research Paraphrase Corpus) dataset and also run inference.

Follow the below steps to install the stable release from the Optimum for Intel Gaudi examples and library:

1. Clone the Optimum for Intel Gaudi project to access the examples that are optimized for Gaudi:

   cd ~
   git clone https://github.com/huggingface/optimum-habana.git
   cd optimum-habana
   git checkout v1.16.0


2. Install the Optimum for Intel Gaudi library. This will install the latest stable release:

   pip install optimum-habana==v1.16.0


3. In order to use the DeepSpeed library on Gaudi, install the Intel Gaudi DeepSpeed fork:

   pip install git+https://github.com/HabanaAI/[email protected]


The following example is based on the Optimum for Intel Gaudi Text Classification task example. Change to the text-classification directory and install the additional SW requirements for this specific example:

cd ~
cd optimum-habana/examples/text-classification/
pip install -r requirements.txt

Now your system is ready to execute fine-tuning on a BERT-Large model.

Single-Card Training

In the ~/optimum-habana/examples/text-classification/ folder, copy and paste the following commands to your terminal window to fine-tune the BERT-Large model on one Gaudi card:

python run_glue.py \
--model_name_or_path bert-large-uncased-whole-word-masking \
--gaudi_config_name Habana/bert-large-uncased-whole-word-masking  \
--task_name mrpc   \
--do_train   \
--do_eval   \
--per_device_train_batch_size 32 \
--learning_rate 3e-5  \
--num_train_epochs 3   \
--max_seq_length 128   \
--output_dir ./output/mrpc/  \
--use_habana  \
--use_lazy_mode   \
--bf16   \
--use_hpu_graphs_for_inference \
--throughput_warmup_steps 3

The results will show both training and evaluation:

{'train_runtime': 54.8875, 'train_samples_per_second': 266.059, 'train_steps_per_second': 8.342, 'train_loss': 0.3403122169384058, 'epoch': 3.0, 'memory_allocated (GB)': 7.47, 'max_memory_allocated (GB)': 9.97, 'total_memory_available (GB)': 94.61}
100%|██████████████ 345/345 [00:54<00:00,  6.29it/s]

***** train metrics *****
epoch                       =        3.0
max_memory_allocated (GB)   =       9.97
memory_allocated (GB)       =       7.47
total_memory_available (GB) =      94.61
train_loss                  =     0.3403
train_runtime               = 0:00:54.88
train_samples               =       3668
train_samples_per_second    =    266.059
train_steps_per_second      =      8.342

   ***** eval metrics *****
epoch                       =        3.0
eval_accuracy               =     0.8775
eval_combined_score         =     0.8959
eval_f1                     =     0.9144
eval_loss                   =     0.4336
eval_runtime                = 0:00:01.73
eval_samples                =        408
eval_samples_per_second     =    234.571
eval_steps_per_second       =     29.321
max_memory_allocated (GB)   =       9.97
memory_allocated (GB)       =       7.47
total_memory_available (GB) =      94.61

Multi-Card Training

In this example, you will be doing the same fine-tuning task on eight Gaudi cards. Copy and paste the following into the terminal window:

python ../gaudi_spawn.py  --world_size 8 --use_mpi run_glue.py  \
--model_name_or_path bert-large-uncased-whole-word-masking  \
--gaudi_config_name Habana/bert-large-uncased-whole-word-masking  \
--task_name mrpc  \
--do_train  \
--do_eval  \
--per_device_train_batch_size 32  \
--per_device_eval_batch_size 8  \
--learning_rate 3e-5  \
--num_train_epochs 3   \
--max_seq_length 128  \
--output_dir ./output/mrpc/  \
--use_habana   \
--use_lazy_mode   \
--bf16    \
--use_hpu_graphs_for_inference  \
--throughput_warmup_steps 3

You will see the training samples per second results are significantly faster when using all eight Gaudi cards:

{'train_runtime': 41.8426, 'train_samples_per_second': 1663.393, 'train_steps_per_second': 6.825, 'train_loss': 0.5247347513834636, 'epoch': 3.0, 'memory_allocated (GB)': 8.6, 'max_memory_allocated (GB)': 34.84, 'total_memory_available (GB)': 94.61}
100%|██████████| 45/45 [00:41<00:00,  1.07it/s]
***** train metrics *****
epoch                       =        3.0
max_memory_allocated (GB)   =      34.84
memory_allocated (GB)       =        8.6
total_memory_available (GB) =      94.61
train_loss                  =     0.5247
train_runtime               = 0:00:41.84
train_samples               =       3668
train_samples_per_second    =   1663.393
train_steps_per_second      =      6.825

***** eval metrics *****
epoch                       =        3.0
eval_accuracy               =     0.7623
eval_combined_score         =     0.7999
eval_f1                     =     0.8375
eval_loss                   =     0.4668
eval_runtime                = 0:00:02.06
eval_samples                =        408
eval_samples_per_second     =    198.062
eval_steps_per_second       =      3.398
max_memory_allocated (GB)   =      34.84
memory_allocated (GB)       =        8.6
total_memory_available (GB) =      94.61

Training with DeepSpeed

With the DeepSpeed package already installed, run multi-card training with DeepSpeed. Create and point to a ds_config.json file to set up the parameters of the DeepSpeed run. See the Hugging Face GitHub page and copy the configuration file example. Once the ds_config.json file is created, copy and paste these instructions into your terminal:

python ../gaudi_spawn.py \
--world_size 8 --use_deepspeed run_glue.py \
--model_name_or_path bert-large-uncased-whole-word-masking \
--gaudi_config_name Habana/bert-large-uncased-whole-word-masking \
--task_name mrpc \
--do_train \
--do_eval \
--per_device_train_batch_size 32 \
--per_device_eval_batch_size 8 \
--learning_rate 3e-5 \
--num_train_epochs 3 \
--max_seq_length 128 \
--output_dir /tmp/mrpc_output_deepspeed/ \
--use_habana \
--use_lazy_mode \
--use_hpu_graphs_for_inference \
--throughput_warmup_steps 3 \
--deepspeed ds_config.json

Note

• To learn more about DeepSpeed, refer to the DeepSpeed User Guide for Training.

• The --output_dir option specifies the directory where the model predictions and checkpoints will be saved. If the specified output directory already exists, a new directory must be provided. In the example above, the output directory is redirected to /tmp/mrpc_output_deepspeed/ to avoid conflict with the existing directory ./output/mrpc/ used in the previous examples. Without this redirection, the example might fail. Alternatively, you can use the --overwrite_output_dir option to overwrite the contents of the existing output directory.

Inference Example Run

Using inference will run the same evaluation metrics (accuracy, F1 score) as shown above. This will display how well the model has performed:

python run_glue.py --model_name_or_path bert-large-uncased-whole-word-masking \
--gaudi_config_name Habana/bert-large-uncased-whole-word-masking \
--task_name mrpc \
--do_eval \
--max_seq_length 128 \
--output_dir ./output/mrpc/  \
--use_habana \
--use_lazy_mode \
--use_hpu_graphs_for_inference

You have now run training and inference on Gaudi.

Next Steps

For next steps you can refer to the following:

• To explore more models from the Model References, start here.

• To run more examples using Hugging Face go here.

• To migrate other models to Gaudi, refer to PyTorch Model Porting.
